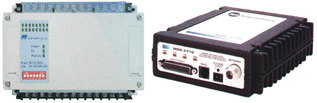

I/O-4000 Series Industrial Wireless I / O Data Transmission
Introduction
I/O-4000 series industrial wireless I / O module is with the collection, alarm, wireless communication, setting and control functions for industrial wireless input and output modules. The modules are simple and beautiful form, full-featured; series of modules, including communication, capture series module, control the series of modules, multi-channel series of modules, multi-series modules, special collection series modules and special collection storage series modules. Communication can be flexibly selected RS-232 or RS-485/422 interface to a wireless data radio. Use high-precision devices are key components to ensure the module’s precision and good linearity. In power, communications, and some have done a complete input protection measures, making the module in the application more secure, stable and reliable. The module is structured to facilitate on-site installation and commissioning. For sensor and signal acquisition and data transfer between the host computer can be built to meet the different needs of the industry’s monitoring system.
Wireless data radio performance indicators according to different environmental requirements and site selection SCADA series of digital data radio or DATA series of simple data radio.
Main indicators
I / O section:
• Effective resolution: 16-bit
Input type: DC current (4 ~ 20mA)
Contact / 5V
Analog input volume level output channels: 8
Digital input output channels: 4
Isolation voltage: 3000VDC
•Data and alarm refresh cycle: <0.5 seconds
Switching the maximum effective distance: 500m
Man-machine interface: 3LED light indicates working status
Accuracy: ± 0.5 ‰ ·
DC power supply range: 12 ~ 36VDC ·
Power consumption: <0.6W ·
Working environment: -10 ℃ ~ +60 ℃; 5 ~ 95% RH ·
Storage temperature: -20 ℃ ~ +70 ℃ ·
Communication: RS-485/232
Wireless components:
• Effective communication distance: 0.1 ~ tens of kilometers
over the air transmission rate: 9600/19200bps
· Radio frequency: 150/230/400/800MHz
· RF output power: 0.1 ~ 25W
· Receiver sensitivity:-115dBm @ 10E-6BER
· Radio Operating temperature: -40 ~ +70 ℃
See: SCADA series digital data radio or a series of simple data radio DATA
