Description

This router is an industrial router device, compatible with 5G/4G networks, with industrial-grade protection, wide temperature and wide voltage design. It can easily build a high-speed and stable local area network, which can easily cover 50-100㎡ sites, and provide stable and reliable WiFi access for work areas, shopping malls, villas and courtyards, etc.
This router uses a high-performance industrial-grade communication processor and industrial-grade communication module, with a built-in WEB UI setting interface, and provides 1 RS232/485, 2 Ethernet LAN, and 1 Ethernet WAN interface. It can connect serial devices and Ethernet devices at the same time, realize data transparent transmission and routing and other functions, and provide stable and reliable Internet access services for terminal devices within the coverage area.

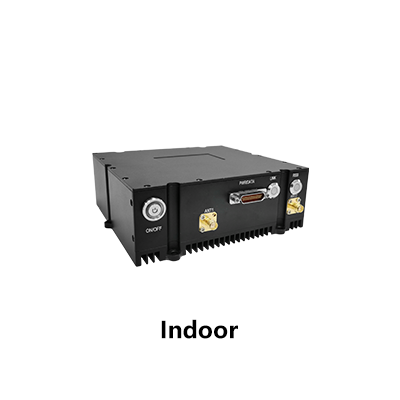

This series of equipment is divided into indoor and outdoor types. Indoor equipment can be directly installed in the indoor weak current box, and outdoor equipment can be directly installed outdoors. The only difference between the two is the shell protection level.

Industrial Router Specifications

Model InformationIndustrial Router HX-100 Series
Dimensions/weight11.7×6.2×3.8cm/0.343kg (Indoor)
18.3×19.1×6.5cm/2.27kg (Outdoor)
Number of antennas2
Applicable frequency band2.4GHz, 5.8GHz
WAN port type1G single port
LAN port type100M
Number of LAN ports2
Heat dissipation methodNatural heat dissipation
Body materialAluminum
Bandwidth40-160MHz
Support IPv6Yes
Other portsSerial port
Management methodWEB page
Total number of devicesLess than 10
AntennaExternal antenna
WAN access port1
LAN output port2
With USB or notNo
Wireless protocolWiFi6
Applicable area50-100㎡
Wireless rate100M
APP controlNo
Network port blind plugSupport
FirewallSupport
Support Mesh or notSupport
Power supply rangePower adapter (input 100-240VAC, 50/60Hz; output 5VDC, 0.4A)
Operating temperature0℃~40℃
Applicable scenariosIndustrial area, shopping mall, villa courtyard, etc.

The radio is first packed into a custom box, and then packed into a carton for delivery.
