Mesh Deployment Camera

Mesh Deployment Camera

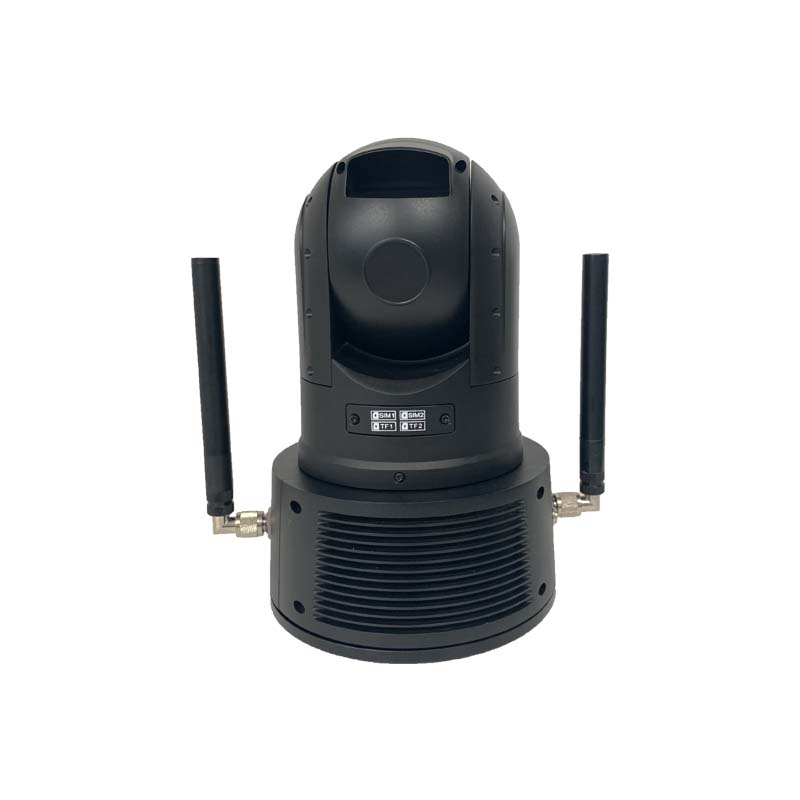

Mesh mobile deployment camera integrates high-definition camera and broadband mesh network module to realize video surveillance, mobile deployment and control, and long-distancewireless transmission of mesh network.

Description

Mesh mobile deployment camera integrates high-definition camera and broadband mesh network module to realize video surveillance, mobile deployment and control, and long-distancewireless transmission of mesh network.

Specification:

  • Built-in high-performance wireless broadband mesh network module, 4G public network/WiFi AP/RJ45 optional
  • HD waterproof camera, with high-performance progressive scan CMOS sensor and high-performance multimedia processor, embedded Linux system
  • H.265 video encoding, support dual stream, resolution 1920×1080/1280*720 25fps/30fps
  • 360° rotation in the horizontal direction and -15°~90° in the vertical direction. Optical zoom 30X, 20X optional, digital zoom 20 times. 256 preset points, 3D noise reduction, anti-shake, auto focus, auto white balance, backlight compensation
  • Laser ranging, 1km night laser fill light, dazzling bird repelling function/navigation pointing function optional
  • You can watch 2~10 kilometers, and you can combine optical fog and electronic fog during the day
  • Day and night conversion mode ICR infrared filter type, infrared distance 60-80m
  • Support fog penetration, backlight compensation, minimum illumination color: 0.05Lux@(F1.6,AGCON), black and white: 0.01Lux@(F1.6,AGCON)
  • 128G SD card
  • Beidou/GPS positioning system, support 802.1b/g/n
  • Frequency range 500-700/1300-1500MHz, wideband 5/10/20MHz adjustable
  • Transmission rate peak 100Mbps@20MHz
  • Receive sensitivity -103dBm@5MHz, transmit power 4 watts (adjustable), transmission distance > 30 kilometers (line-of-sight)
  • It supports up to 15 hops, the bandwidth does not decrease after 3 hops, supports 128 node networking, and the networking time is less than 1 second
  • Intelligent frequency selection / wide and narrow frequency hopping anti-jamming
  • One-click boot, no need to configure and change parameters, convenient operation and maintenance
  • Battery 10.4Ah/12V, 8 hours of battery life, average power consumption is less than 30 watts; external mains power is available
  • Operating temperature -40~+80°, three protection grade IP66, size 260x167mm, weight 4.5kg
  • Spare parts include tripod, charger, composite aviation cable, main antenna, WiFi antenna, packing box
