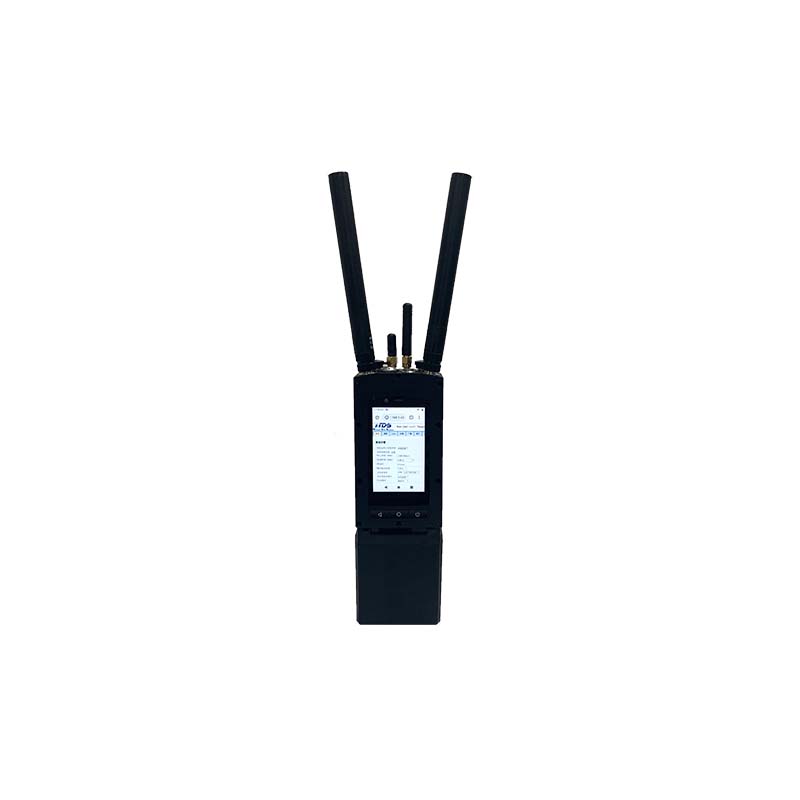

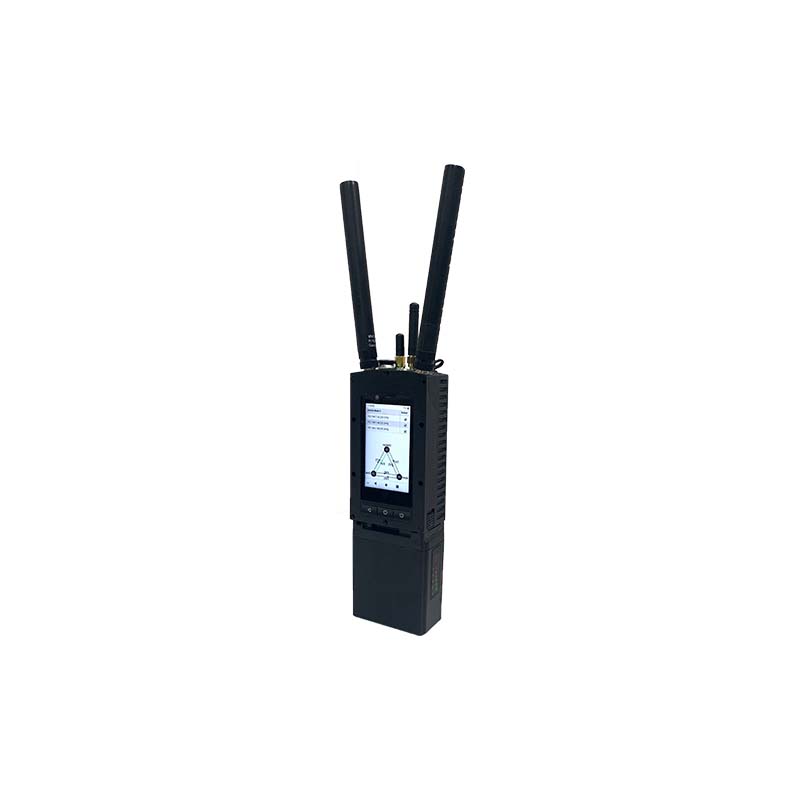

Mesh Multimode Smartphone
Description
To Mesh the ad-hoc network as the main carrying channel, 3/4 g public support, wi-fi, bluetooth and other networks, and support professional ad-hoc network of DMR talkback intelligent terminals, such as hd video transmission, packet voice communication as the main application mode, and both remote monitoring (satellite positioning, audio and video acquisition upload) and instruction information interaction, and other functions, in addition, The terminal provides daily essential functions such as making calls and sending short messages, and supports the installation of third-party applications.
Features:
- Easy to operate and functional. The terminal is powerful, simple and practical. It can realize one-key call through the PTT button, and the front display can display the current network status
- Long transmission distance and strong anti-interference ability. The terminal adopts adaptive modulation mode, intelligent screen selection algorithm and flexible and efficient networking strategy, and has voice multi-hop relay, long-distance, stable and reliable communication capabilities
- Self-designed and easy to expand. The terminal adopts adaptive physical layer algorithm and application layer design, and can perform function control according to requirements
- Support MESH ad hoc network, support DMR, support 4G public network, support WI-FI, support GPS/BD positioning, support Bluetooth, support video and audio transmission, support voice intercom
Mesh Smart Phone Technical Indicators
| General Specification | |
| Size（HxWxD，mm） | 260x69x40 |
| Weight | ≤1000g(With battery, without antenna) |
| Battery | 12V、Detachable |
| Screen | LCD2.4、240×320 |
| Voice Business | PTT |
| Data Business | Realize by connecting external devices through data interface |
| Interface | Headset interface, RS232/Ethernet interface |
| Working Time | ≥4h |
| Wireless Communication Specifications | |
| Channel Capacity | 25Mbps@10MHz |
| Single-hop Communication Distance | ≥15km（Visible environment） |
| Ability to relay | 15hops |
| Working Frequency | 500~700MHz 1350~1450MHz |
| Channel Bandwidth | 2.5/5/10MHz |
| Transmission Power | 0.5Wx2 |
| Modulation Method | QPSK/16QAM/64QAM(Adaptive) |
| Receive Sensitivity | -99dBm @400kHz |
| Environmental Performance | |
| Operating Temperature | -40~+55℃ |
| Dustproof and Waterproof Rating | IP66 |
