Mesh900(P900) Series Wireless Data/Voice Transmission

Mesh900 (P900) wireless data / voice narrowband ad hoc network provides small size and flexible design solutions for low cost and limited space applications. Mesh900 (P900) wireless data/voice narrowband ad hoc network has the same reliability, performance and index as other large-scale data transmission modules.

Description

Mesh900 (P900) wireless data/voice narrowband ad hoc network has the advantages of high speed, reliability, low delay and secure data communication. Supports full duplex serial port and diagnostic communication. Mesh900 (P900) wireless data/voice narrowband ad hoc network has extremely high noise suppression, interference elimination and flexible frequency synthesis, digital modulation and matched filter detection technology.

Features:

  • Very Low Cost
  • Mesh
  • 1/10Watts
  • Extended Temperature
  • Dual Serial Ports
  • Excellent Sensitity

Performance:

  • Very Low Cost
  • Supports up to 276kbps
  • Ultra low noise and interference suppression 4-stage filtering

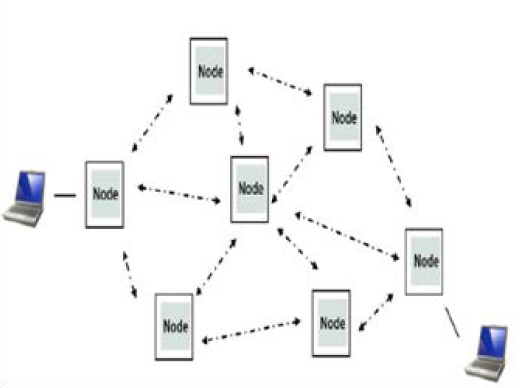

  • Ture Self Healing Mesh, Auto Routing, Store & Forward
  • Industrial Temperature (-55℃ to+85℃)
  • Maximum allowable transit power (Adjustable, up to 1W)
  • Low Power consumption in Sleep and Sniff modes
  • 32 bit of CRC,selectable Foeward Error Correction with retransmit
  • Separate diagnostics port—transparent remote diagnosis and online network control

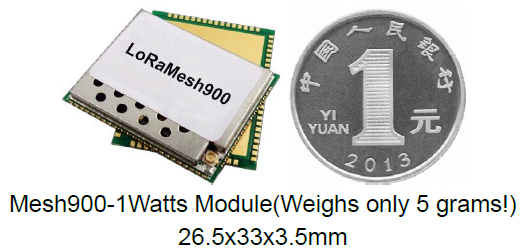

  • Extremely Small Footprint(26.5 x 33 x 3.5mm)

Mesh900(P900) Technical Specifications of Wireless Data/Voice Narrowband Ad Hoc Networks

Operating Frequency902-928MHz
Spread Spectrum ModeFrequency Hopping
Forward Error CorrectionHamming
BCH
Golay
Reed- Solomon
Error Detection32 bits of CRC,ARQ
EncryptionOptional(see-AES option)
Communication Range60km,1W, working in the open and expand without obstruction
Sensitivity (@ 10-4)-110 dBm @ 115.2 kbps
-108 dBm @ 172.8 kbps
-107 dBm @ 230.4 kbps
Output Power100mW – 1W/10W
Serial Interface3.3V CMOS
Serial Port Baud RateUp to 230.4kbps asynchronous
Air Rate115 – 276kbps
Operating ModeMesh,Auto Routing,Store and For-ward,Self Healing,Packet Routing Modes
Signal InterfaceRxD1,TxD1,RTS,CTS DCD,DSR,DTR,RxD2,TxD2,RSSI LEDs,Tx/Rx LEDs,Reset,Config,Wake-up,RSmode,4Digital Inputs/Outputs,1 Analog Input,1 Analog Output
Out-of-band Radiation+/- 1MHz > 55 dBc
+/- 2.5MHz > 60 dBc
+/- 5MHz > 65 dBc
>930MHz > 70 dBc
<890MHz > 70 dBc
Remote DiagnosisBattery Voltage, Temperature,RSSI,Packet Statistics
Operating Voltage3.3VDC Nominal(+/-0.3V)
Power consumption(3.3V +/-0.3V@1W)Sleep < 1mA
Idle 3.5mA
Rx: 45mA to 1400mA
Tx: 1000mA to 1400mA
Connect

Antenna
Data

UFL
80 Pin SMT
Temperature-55℃~+85℃
WeightApprox. 5 grams
SizeApprox. 1.05″x1.3″x.13″
(26.5mm x 33mm x 3.5mm)
LicenseFCC Part 15.247
IC RSS210

Application:
