pMDDL(DDL/pDDL) Series New Wireless Digital Data Link
Description
The new pMDDL(DDL/pDDL) digital data link is a new high power OEM product with small size, light weight, 2X2 MIMO, complete functions and rich frequency bands. The pMDDL(DDL/pDDL) series of 2X2 MIMO wireless digital OEM solutions provides low latency, high bandwidth, long distance communication services for complex data-intensive applications. pMDDL(DDL/pDDL) series products are equipped with 2X2 MIMO, using Maximal Ratio Combining (MRC), Maximal Likity (ML) algorithm, low density parity (LDPC) coding and other technologies to achieve powerful RF performance. pMDDL(DDL/pDDL) series products have outstanding security performance, Ethernet and serial data can communicate at the same time.
performance:
- 1.6GHz/1.8GHz/2.0GHz/2.2GHz/2.3GHz/2.4GHz Software settings can be selected
- Maximal Ratio Combining(MRC)、Maximal Likelihood Decoding(MLD)
- Low-Density Parity Check(LDPC)
- IPerf throughput up to 21Mbps@8MHz channel (-78 dBm)
- IPerf throughput up to 2Mbps@4MHz channel (-102 dBm)
- Super light, super small size
- Serial communication port
- Dual 10/100 network port (LAN/WAN)
- Support for point-to-point, Point-to-multipoint, and multipoint-to-multipoint networks
- Master/slave, no-central Mesh
- Transmitting power adjustable (up to 1 watt)
- Can be connected through local control port, remote login and web browser
- Local and remote wireless upgrades via FTP
Features：
- 2 x 2 MIMO
- Up to 21 Mbps
- 6 frequency bands can be setand selected
- Multi network port + multi serial port
- Point-to-point, Point-to-multipoint, Relay
- Small size、Industrial application environment
pMDDL Module Technical Indicator
| Frequency | 1625 to 1725 MHz 1780 to 1850 MHz 2020 to 2110 MHz 2200 to 2300 MHz 2300 to 2390 MHz 2400 to 2500 MHz |
| Error Detection | 32 bits of CRC, ARQ |
| Encryption | 128-bit AES (Optional 256-bit) |
| Ports Serial Data/Console Ethernet USB | RS232 TTL level (300bps to 921kbps) Dual 10/100Base EEE802.3 (LAN/WAN) 2.0 |
| Firewall | Port Forwarding, Access Control, IP/MAC List |
| Operating Modes | Point-to-point, Point-to-multipoint, Relay |
| Diagnostics | Remote Diagnostics, Ping, Traceroute, ARP table, DHCP active leases, IPerf, RSSI |
| Management | Local Serial Port Console, Telnet, WebUI, SNMP, FTP Upgrade, TFTP, CLI (Command Line Interface) |
| Rejection | Excellent strong signal interference & rejection characteristics |
Input Voltage Enclosed | Digital Voltage = 3.3V RF Voltage = 5V 7-30VDC |
| Connectors OEM Enclosed | Antenna: UFL x2 (ANT1, ANT2) Data: 116 Pin SMT Antenna: SMA x2 (ANT1, ANT2) Data: RJ-45 x2 (Ethernet) Female DB9 (Serial) USB Type A Micro-AB USB (Console) 4 PIN Interlock (Vin) |
| Environmental Temperature | -40°F to 185°F (-40℃ to +85℃) 5-95%，non-condensing |

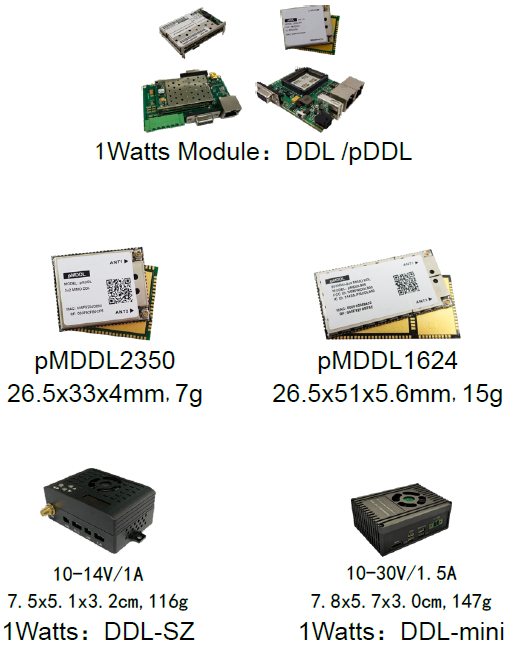

| Weight OEM | 15g 275g |
| Dimensions OEM | 26.5mm x 51mm x 5.6mm 81mm x 88mm x 35mm |
| Order Options pMDDL1624 pMDDL1624-ENC | 2X2 MIMO Hexa-Band OEM Data Link 2X2 MIMO Hexa-Band Enclosed Data Link |
The radio is first packed into a custom box, and then packed into a carton for delivery.
