The SmartMesh Series of Wireless Broadband MESH utilizes the latest generation of radio communication network technology and the most advanced devices with high speed processing, high integration and low power consumption. It is compact in design and can be used hand-held, backpack, vehicular, airborne or built in for integrated use with a maximum of 2 watts x2/10 watts x2/0.5 watts x2/10 watts x2 of transmitting power,realizing remote broadband wireless data transmission and the most powerful and flexible networking.

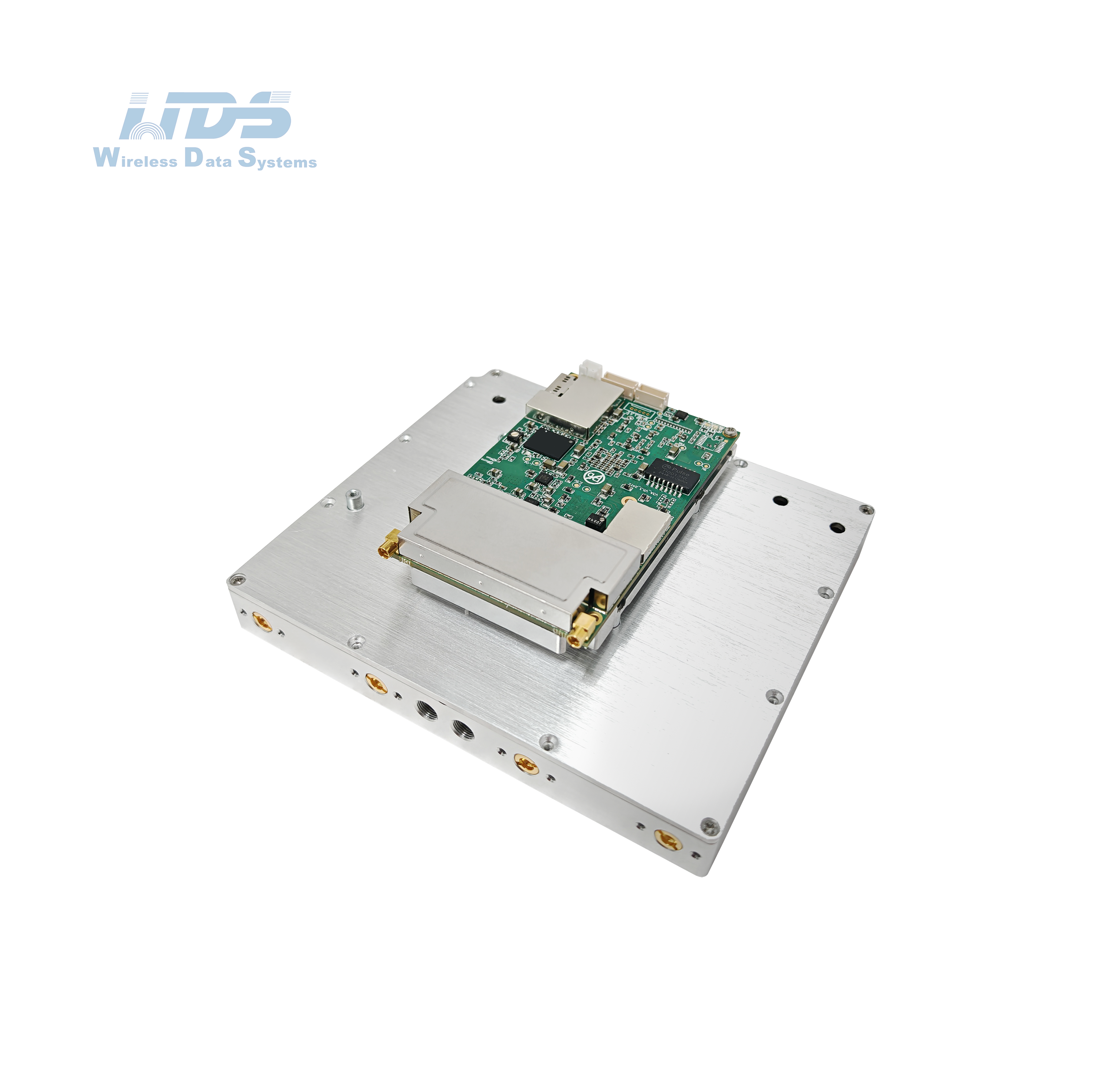

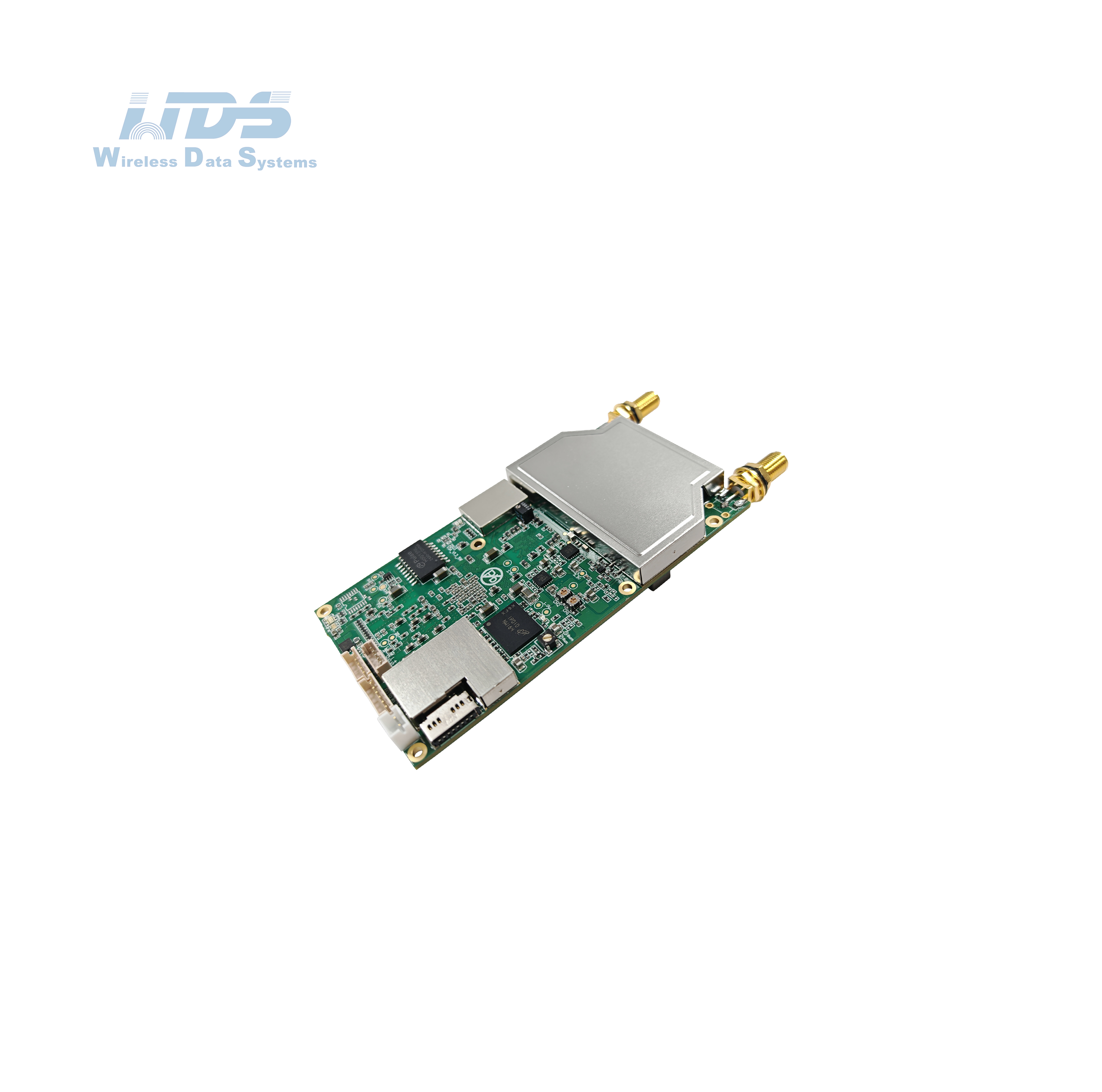

SmartMesh OEM Module
Description
SmartMesh series wireless broadband AD hoc network radio, using the latest generation of software radio (SDR) platform, with long distance, high speed, fast access to the network, fast route switching, flexible networking, 2×2MIMO, rich frequency band (frequency can be customized), rich interface, small size, light weight and other advantages. The radio has high integration, low power consumption, compact design, module/airborne/handheld/vehicle/load/outdoor base station and other forms, supporting 0.5Watts×2/1Watts×2/2Watts×2/10Watts×2/20Watts×2 power output.
SmartMesh has a high security level and supports multiple encryption modes. Powerful LPI/LPD performance, support frequency hopping, intelligent frequency selection; Support a variety of working modes, point-to-point, point-to-multipoint, multipoint to multipoint; Flexible networking, star network, chain network, mesh network and hybrid network topology. SmartMesh radio can be widely used in the networking and control of intelligent terminals such as drones, unmanned vehicles, unmanned ships, robots, and can also be applied to individual soldier networking, rescue and disaster relief, emergency communication, intelligent power, forest fire prevention, mine operation, anti-terrorism special service, civil air defense and other industries.
Main features of SmartMesh Wireless Broadband MESH:
RF performance:
- One button boot, set up anywhere.Long distance, high throughput
- Anti interference COFDM / broadband carrier frequency hopping can improve link quality in complex RF environment
- Excellent multipath and NLOS performance
- Adaptive radio modulation from QPSK to 64QAM is continuously optimized per packet to optimize link performance in dynamic environments
- Software defines channel sizes for efficient reuse of spectrum
- The software defines the operating frequency of the global application
- Convolution coding, forward error correction (FEC), ACK retransmission, maximum ratio merge, spatial multiplexing, and space-time block coding are
- used for robust data transmission over noise spectrum
- Time Division Duplex (TDD) for Bidirectional Transmission
Network performance:
- Self-organizing, self-healing mobile Mesh networks, multi-hop routing, dynamic topology
- Ultra-Reliable Low Delay Channel for Command and Control (URLLC)
- Optimizing video streaming media channels on the same wireless link
- End-to-end IP architecture for unicast and multicast traffic
- Data transmitted over the air can be encrypted with up to 256-bit AES
- ake advantage of the most advanced and scalable OpenWrt ecosystem
- Embedded network management APIs
Other:
- Small Size, Light Weight, and Low Power-Low Cost(SWAP-C) for Mobile Device Applications
- Ethernet and UART interfaces can be easily integrated into different system architectures
- Rugged earthquake-resistant construction, industrial temperature range
OEM Module Specifications
| General | |
| Waveform/SDR Platform | Mobile Network MANET/9363 or 9361+7Z020 |
| MIMO Technology | Space-time coding、Receive Diversity、TX /RX beamforming |
| Receive Sensitivity | -103dBm@5MHz BW |
| Channel Bandwidth | 1.25/2.5/5/10/20MHz optional |
| Data Rate | 1-70Mbps(10MHz BW) Adaptive,QoS |
| Modulation Mode | TD-COFDM,BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM adaptive |
| RF Output Power (Support TPC, transmisson power control) | 0.5Watts x2 1Watts x2 2Watts x2 |
| Single Hop Communication Distance | Air to G. 10~30KM (0.5Watts x2) |
| Mode | Point-to-point/Point-to-multipoint/Multipoint-to-multipoint,Automatic relay,Star/Line/Network/Hybrid |
| Single Hop Delay | Average 7mS(20MHz BW) |
| Encryption | DES, AES128/256,Chip /TF card encryption customized |
| Anti-jamming Mode | Manual spectrum scanning channel selection, Intelligent frequency channel Selection/Autonomous frequency hopping/Roaming mode optional |
| Local/Remote Management | Operating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic, GPS/Beidou electronic map, temperature/voltage/interference Monitoring, software upgrade |
| Others | The startup time is less than 30 seconds, and the network access/update/switchover time is less than 1 second.There is no limit on the user capacity of a single system and the number of hops in Mesh networks. The total bandwidth loss of multiple hops is less than 70%.Automatic carrier tracking, support over 800 km/h mobile communication |
| Bands(70M-6GHz. 2T2R at single band, or 1T2R at dual band selectable/smart change*) | |
| BAND | Frequency range |
| UHF | 430-550/570-700/800-950, 225-400/320-470*MHz |
| L Band | 1000-1200/1300-1500/1600-1800/1800-2000, 1200-1700*MHz |
| MIIT | 336-344/512-582/566-626/606-678/1420-1520/1430-1444MHz |
| S Band | 2.0-2.2/2.2-2.5/2.5-2.7/2.7-2.9, 1.6-2.3/1.9-2.7*GHz |
| C Band | 4.4-5.0/5.25-5.85, 4.2-5.2/5.5-6.0*GHz |
| Environmental | |
| Operation Temperature | -40℃ ~+80℃ |
| Protection Level | IP66,IP67/IP68 Customized |
| Mechanical | |
| Size/Weight | 8.7×5.4×1.0cm/40g (1Watts×2 Module) 9.7×5.4×1.0cm/60g (2Watts×2 Module) 6.2×4.8×1.0cm/50 (Mainboard 25)g (0.5Watts×2 Module, SM-mini) |
| Installation/Color | 4 Mounting Holes/Black、Lron Gray、Army Green Optional |
| Power | |
| Supply Voltage | 9-32VDC (0.5Watts×2) 9-39VDC (1Watts×2) 12-36VDC (2Watts×2) |
| Power consumption | Operation 0.3-0.5A/Standby 0.2-0.3A@12V(0.5Watts×2) Operation 0.5-1A/Standby 0.4-0.6A@12V (1Watts×2) Operation 1-2A/Standby 0.5-0.7A@12V (2Watts×2) |
| Power Selection | Power Supply by Twist-Lock Battery or Main Cable |
| Interface | |
| Basic interface | J1 (DC input),J2 (serial port 0, serial port 1 RS-232 level),J3(Ethernet service, data channel) |
| Push to talk/Auxiliary interface | MIC, SP, PTT, GND/1xRS485,1xUSB2.0 OTG |
| Network Extension | 4G-5G Public Network Routing/WB-NB integration /LTE, Satellite, Fiber |
| Video Extension | Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1 |
| Link Status Indicator | Steady red – The network is not connected Blinking red – Starting/not connected to the network Steady green – The network is connected Blinking green – Voice PTT is down |
| RSSI Link Indicator | Steady green – The link quality is excellent Blue Steady – The link quality is good Steady yellow – The link quality is medium Steady purple – The link quality is slightly worse Steady red – The link quality is poor or link is down |
| Management Interface/Control Interface | Web-based network management/GUI, API secondary development interface/SNMP |

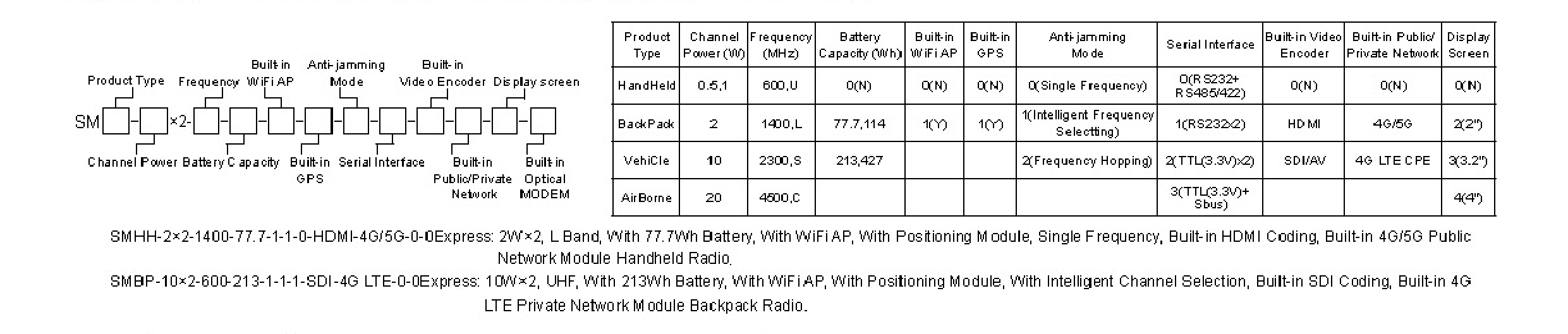

Model Name:
Accessories: Options:
This series of products for users, at the top, underground, large complex urban complex building, and earthquakes, floods, landslides and other major catastrophic natural disaster accident rescue under complicated environment, rapid automatic forming a flexible and reliable dynamic routing/jump relay multipoint to multipoint no centre, self-organizing mesh wireless communication network, It provides fast and flexible special wireless communication for hd video, intercom voice, IP network/serial asynchronous data and other services, provides key emergency communication for field joint operation command, and powerful comprehensive data link for uav, unmanned vehicle and other intelligent equipment.
