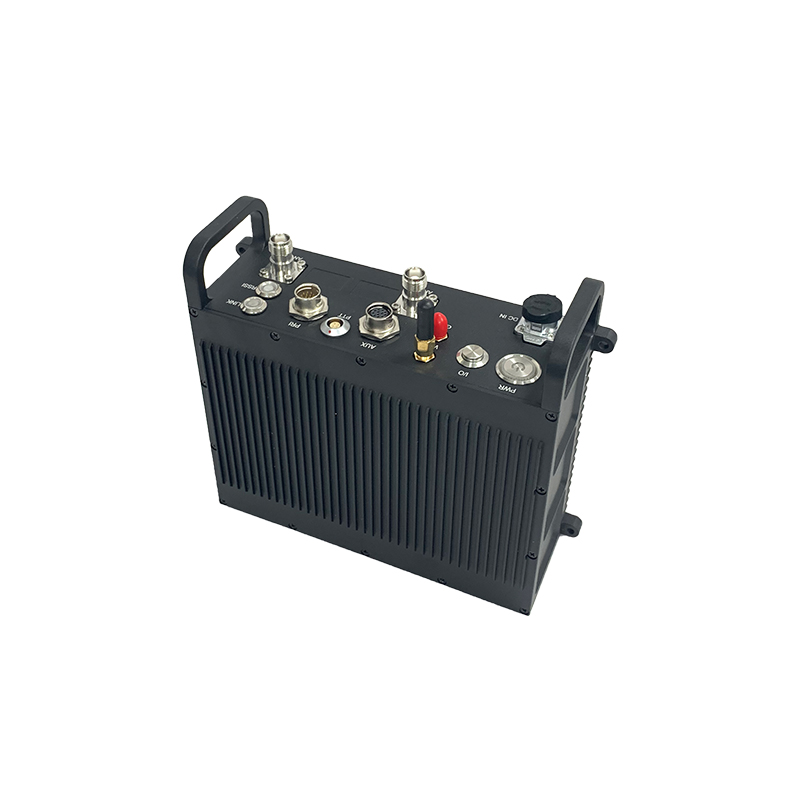

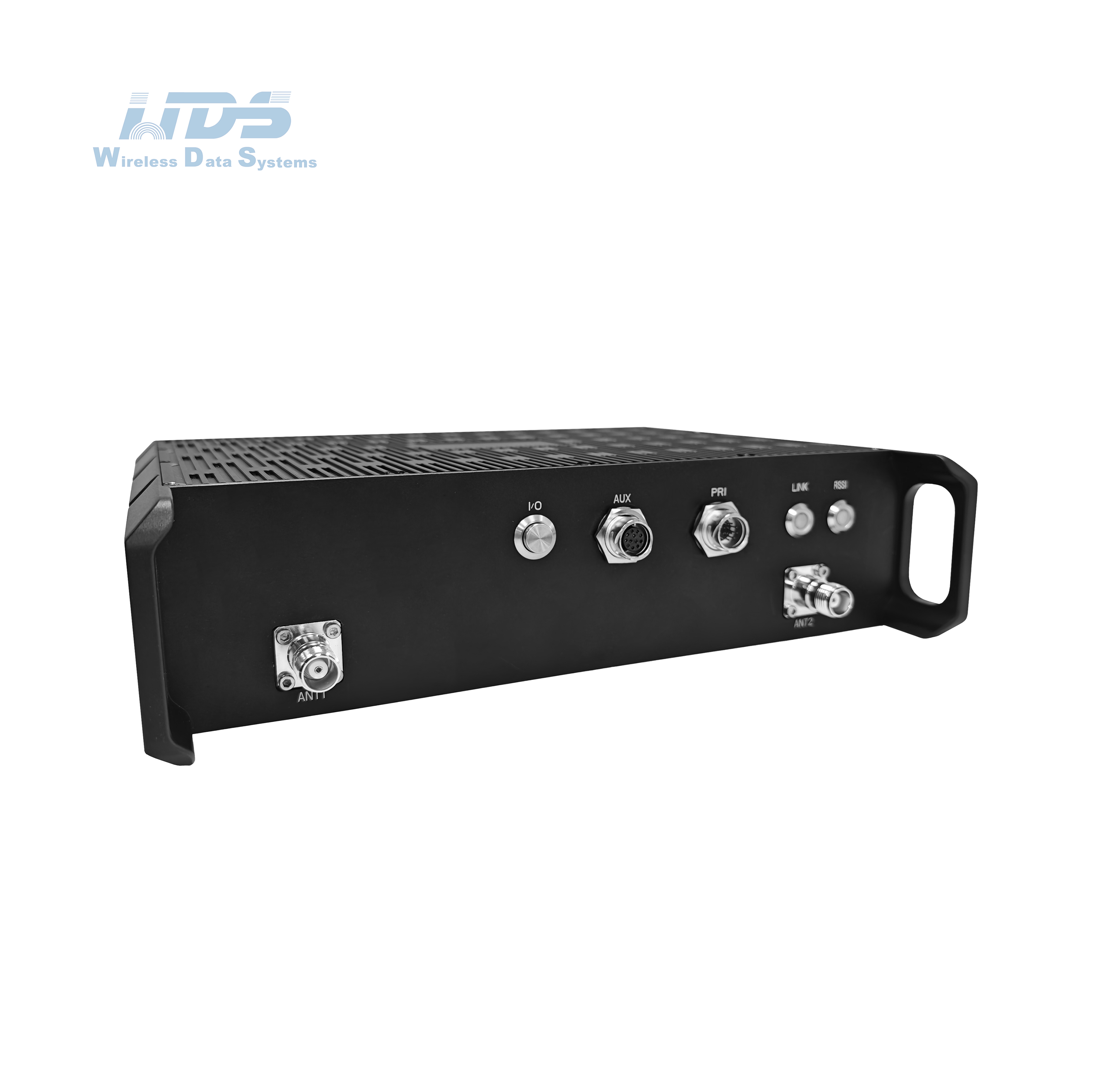

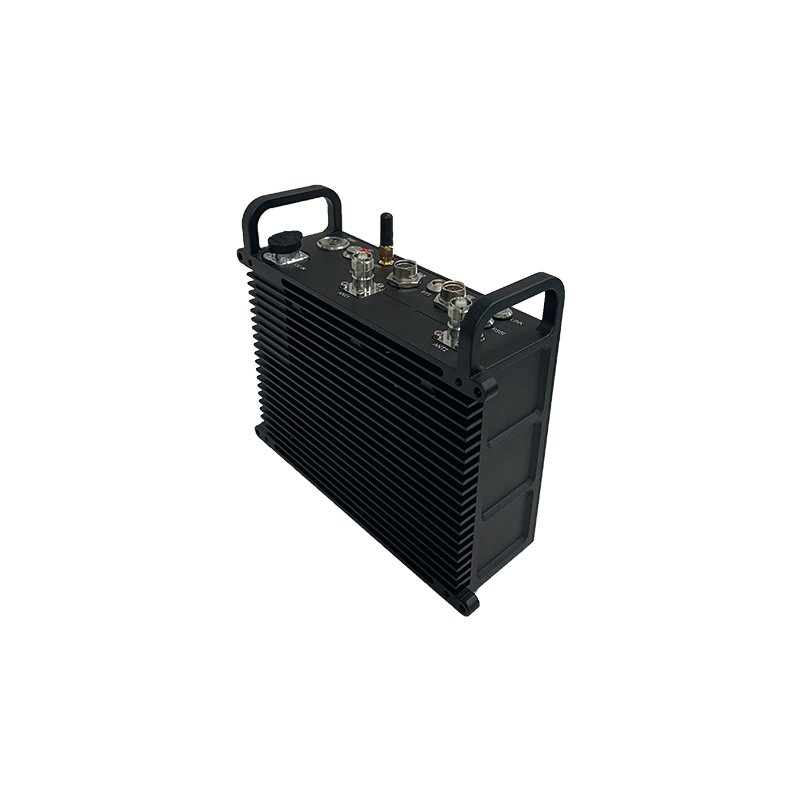

SmartMesh Vehicle Radio-Mesh Radio

SmartMesh Vehicle Radio-Mesh Radio

SmartMesh series wireless broadband AD hoc network radio, using the latest generation of software radio (SDR) platform, with long distance, high speed, fast access to the network, fast route switching, flexible networking, 2×2MIMO, rich frequency band (frequency can be customized), rich interface, small size, light weight and other advantages. The radio has high integration, low power consumption, compact design, module/airborne/handheld/vehicle/load/outdoor base station and other forms, supporting 0.5Watts×2/1Watts×2/2Watts×2/10Watts×2/20Watts×2 power output.
SmartMesh has a high security level and supports multiple encryption modes. Powerful LPI/LPD performance, support frequency hopping, intelligent frequency selection; Support a variety of working modes, point-to-point, point-to-multipoint, multipoint to multipoint; Flexible networking, star network, chain network, mesh network and hybrid network topology. SmartMesh radio can be widely used in the networking and control of intelligent terminals such as drones, unmanned vehicles, unmanned ships, robots, and can also be applied to individual soldier networking, rescue and disaster relief, emergency communication, intelligent power, forest fire prevention, mine operation, anti-terrorism special service, civil air defense and other industries.

Description

The SmartMesh Series of Wireless Broadband MESH utilizes the latest generation of radio communication network technology and the most advanced devices with high speed processing, high integration and low power consumption. It is compact in design and can be used hand-held, backpack, vehicular, airborne or built in for integrated use with a maximum of 2 watts x2/10 watts x2/0.5 watts x2/10 watts x2 of transmitting power,realizing remote broadband wireless data transmission and the most powerful and flexible networking.
This series of products for users, at the top, underground, large complex urban complex building, and earthquakes, floods, landslides and other major catastrophic natural disaster accident rescue under complicated environment, rapid automatic forming a flexible and reliable dynamic routing/jump relay multipoint to multipoint no centre, self-organizing mesh wireless communication network, It provides fast and flexible special wireless communication for hd video, intercom voice, IP network/serial asynchronous data and other services, provides key emergency communication for field joint operation command, and powerful comprehensive data link for uav, unmanned vehicle and other intelligent equipment.

Main features of SmartMesh Wireless Broadband MESH:

RF performance:

  • One button boot, set up anywhere.Long distance, high throughput
  • Anti interference COFDM / broadband carrier frequency hopping can improve link quality in complex RF environment
  • Excellent multipath and NLOS performance
  • Adaptive radio modulation from QPSK to 64QAM is continuously optimized per packet to optimize link performance in dynamic environments
  • Software defines channel sizes for efficient reuse of spectrum
  • The software defines the operating frequency of the global application
  • Convolution coding, forward error correction (FEC), ACK retransmission, maximum ratio merge, spatial multiplexing, and space-time block coding are
  • used for robust data transmission over noise spectrum
  • Time Division Duplex (TDD) for Bidirectional Transmission

Network performance:

  • Self-organizing, self-healing mobile Mesh networks, multi-hop routing, dynamic topology
  • Ultra-Reliable Low Delay Channel for Command and Control (URLLC)
  • Optimizing video streaming media channels on the same wireless link
  • End-to-end IP architecture for unicast and multicast traffic
  • Data transmitted over the air can be encrypted with up to 256-bit AES
  • ake advantage of the most advanced and scalable OpenWrt ecosystem
  • Embedded network management APIs

Other:

  • Small Size, Light Weight, and Low Power-Low Cost(SWAP-C) for Mobile Device Applications
  • Ethernet and UART interfaces can be easily integrated into different system architectures

Vehicle Radio Specifications

General
Waveform/SDR PlatformMobile Network MANET/9363 or 9361+7Z020
MIMO TechnologySpace-time coding、Receive Diversity、TX /RX beamforming
Receive Sensitivity-103dBm@5MHz BW
Channel Bandwidth1.25/2.5/5/10/20MHz setting
Data Rate1-70Mbps(7MHz BW) Adaptive,QoS
Modulation ModeTD-COFDM,BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM adaptive
RF Output Power
(Support TPC, transmisson power control)
10Watts x2
20Watts x2
Single Hop Communication Distance100-300 KM (visible), 1-30 KM (urban area)
ModePoint-to-point/Point-to-multipoint/Multipoint-to-multipoint,Automatic relay,Star/Line/Network/Hybrid
Single Hop DelayAverage 10mS(20MHz BW)
EncryptionDES, AES128/256,Chip /TF card encryption customized
Anti-interference ModeManual spectrum scanning channel selection, Intelligent frequency channel Selection/Autonomous frequency hopping/Roaming mode optional
Local/Remote ManagementOperating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic, GPS/Beidou electronic map, temperature/voltage/interference Monitoring, software upgrade
OthersThe startup time is less than 30 seconds, and the network access/update/switchover time is less than 1 second.There is no limit on the user capacity of a single system and the number of hops in Mesh networks. The total bandwidth loss of multiple hops is less than 70%.Automatic carrier tracking, support over 800 km/h mobile communication
Bands(70M-6GHz. 2T2R at single band, or 1T2R at dual band selectable/smart change*)
BANDFrequency range
UHF430-550/570-700/800-950, 225-400/320-470*MHz
L Band1000-1200/1300-1500/1600-1800/1800-2000, 1200-1700*MHz
MIIT336-344/512-582/566-626/606-678/1420-1520/1430-1444MHz
S Band2.0-2.2/2.2-2.5/2.5-2.7/2.7-2.9, 1.6-2.3/1.9-2.7*GHz
Lower C Band4.4-5.0/5.25-5.85, 4.2-5.2/5.5-6.0*GHz
Environmental
Operation Temperature-40℃ ~+80℃
Protection LevelIP66,IP67/IP68 Customized
Mechanical
Size/Weight19.1×16.1×6.5cm/1.58kg
Installation/Color4 Mounting Holes/Black,Lron Gray、Army Green Optional
Power
Supply Voltage18-32VDC(10Watts×2/20Watts×2)
Power consumptionOperation 3-6A/Standby 0.7-0.9A@16.8V (10Watts×2)
Operation 6-7A/Standby 0.7-0.9A@20V (20Watts×2)
Power SelectionPower Supply by Twist-Lock Battery or Main Cable
Interface
Basic interfaceRF 2xTNC, 1-2xRJ45 Ethernet 100/1000BaseT, WiFi AP,RS232/485/422, Sbus/USB/Bluetooth, 1.2-230.4Kbps, DC Input
Push to talk/Auxiliary interfaceMIC, SP, PTT, GND/1xRS485,1xUSB2.0 OTG
Network Extension4G-5G Public Network Routing/WB-NB integration /LTE, Satellite, Fiber
Video ExtensionLow Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1
Link Status IndicatorSteady red – The network is not connected
Blinking red – Starting/not connected to the network
Steady green – The network is connected
Blinking green – Voice PTT is down
RSSI Link IndicatorSteady green – The link quality is excellent
Blue Steady – The link quality is good
Steady yellow – The link quality is medium
Steady purple – The link quality is slightly worse
Steady red – The link quality is poor or link is down
Management Interface/Control InterfaceWeb-based network management/GUI, API secondary development interface/SNMP

Model Name:

Accessories:                                                                                                                 Options:

This series of products for users, at the top, underground, large complex urban complex building, and earthquakes, floods, landslides and other major catastrophic natural disaster accident rescue under complicated environment, rapid automatic forming a flexible and reliable dynamic routing/jump relay multipoint to multipoint no centre, self-organizing mesh wireless communication network, It provides fast and flexible special wireless communication for hd video, intercom voice, IP network/serial asynchronous data and other services, provides key emergency communication for field joint operation command, and powerful comprehensive data link for uav, unmanned vehicle and other intelligent equipment.

Oem Built-In Integrated Extreme Design For Mesh Networking In Harsh Environments
2 Watts ×2 Transmission Power, Small Size, Light Weight
Rich Interface, Built-In Network Port, Serial Port, High Fidelity (G.722) Intercom Call
Long Distance, High Speed, Flexible Networking, Strong Anti-Interference Ability
