The PDL35W/ADL45W/SDL25W high-power base station radio provides high-speed, long-distance and high-speed, long-range navigation for the Global Navigation Satellite System (Global Navigation Satellite System)/Real-time Kinematic for field surveying, precision positioning and other operations. Distance, anti-interference wireless data link (Wireless Data Link).

Description

Product Introduction

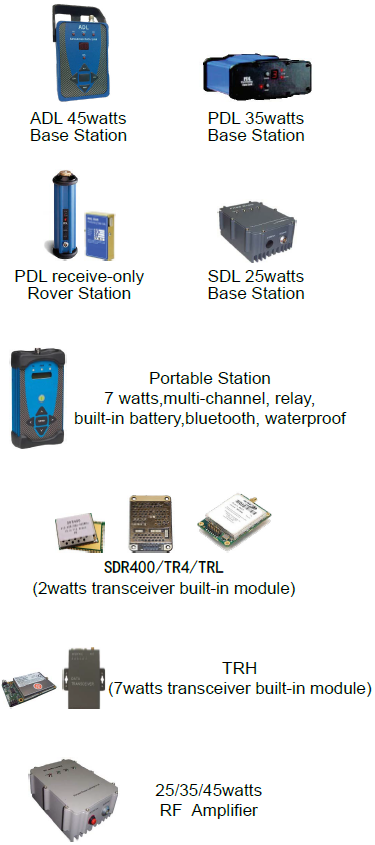

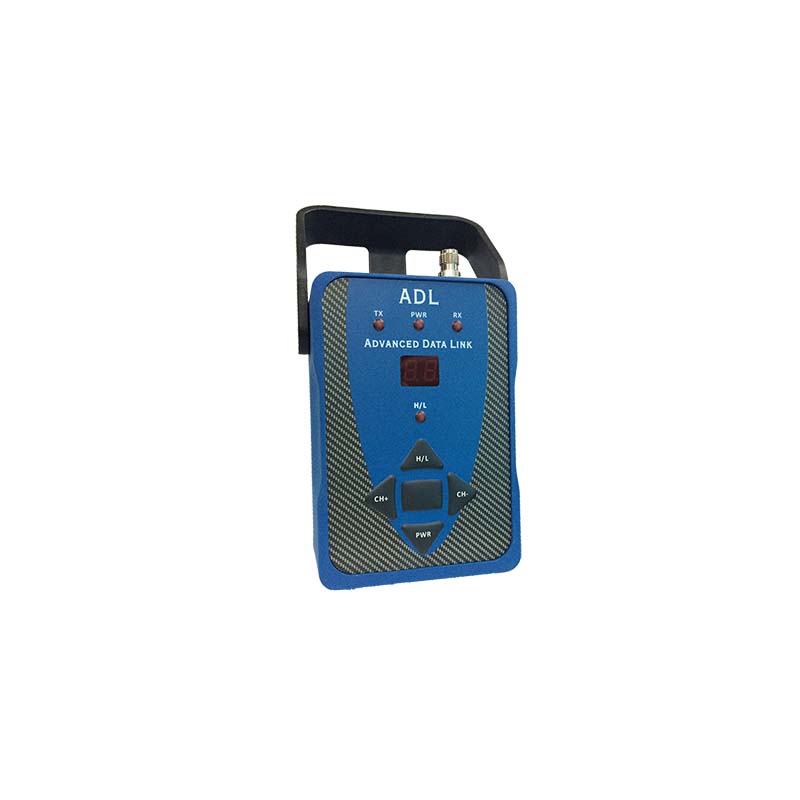

The radio is sturdy and compact in structure, light in weight, efficient in power saving. No matter how harsh the environment is, the radio is easy to operate, stable in performance and reliable in work. The radio is uniquely designed for mounting to a tripod or parallel pole and offers a variety of accessories such as cables, chargers, carrying cases and more.

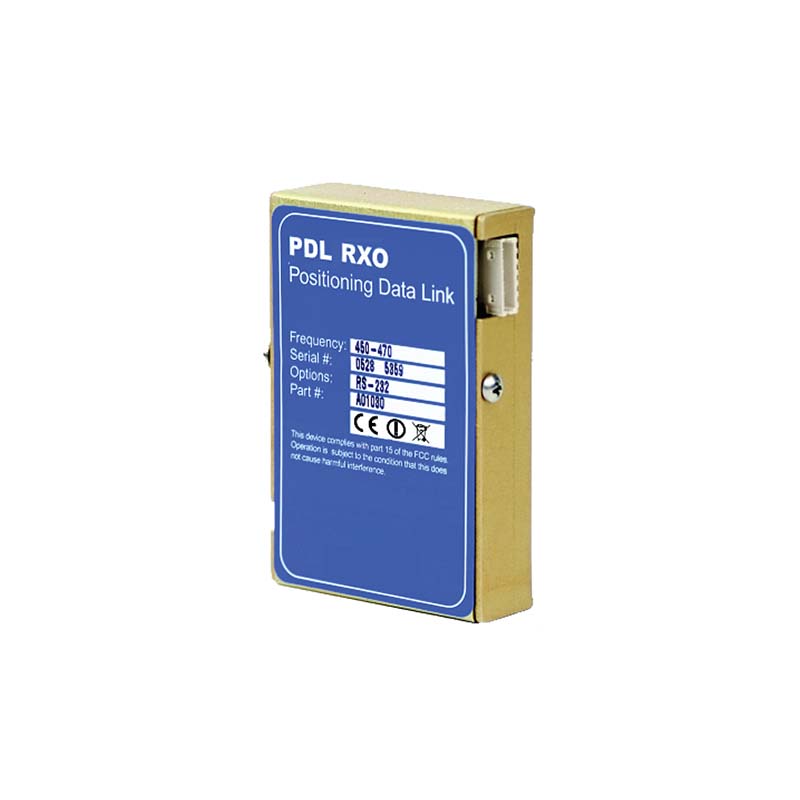

TR4/TRH Module is a high-performance bidirectional data communication link module that can be integrated into the product. This advanced transceiver module is fully compatible with PDL Trimble/Satel series radios. Highly integrated products bring great convenience and benefits to the connection, structure and power supply of the system.

Product features

Features：

GPS, GLONASS and Compss, Galileo: Compatible with Pacific Crest, Trimble, Satel, MDS and other radios
High-speed and reliable transmission: 19.2/9.6kbps, 230.4/115.2kbps
Long distance: base station 45W high-power RF output, dedicated high-gain antenna
Anti-interference: multi-channel frequency hopping technology and terminal self-service frequency writing function
Built-in transceiver module: compact structure, rich interface, low power consumption, wide voltage power supply
Antenna open circuit protection and power supply reverse protection, flexible power supply, IP66 waterproof and shockproof
Simple installation and easy integration
Relay function

GNSS/RTK Wireless Data Link Specifications

	PDL/ADL/SDL High Power Base Station Radio	RXO/TRX Built-in Transceiver Module
DTE – DCE Interface	RS232 (3-wire), Maximum 38.4/230.4kbps
User Interface	Power switch button Channel selection buttons and auto-scanning digital display Power and data sending and receiving status display RF power output options	Six-wire socket, see the operation manual for details
External Power Supply	9-16 VDC	3.3-5/5.5-45 VDC
Internally Powered	N/A	N/A
Transmitting Power Consumption (Maximum)	110/150/85Watts	0/4.5Watts
Receiving Power Consumption (Maximum)	1.9Watts	0.3Watts
Antenna Connector	50 Ohm, BNC/TNC Female	50 Ohm, SMA Female
Air Rate/Modulation Method	19.2kbps/4 Level FSK(25KHz) 9.6kbps/4 Level FSK(12.5KHz) 9.6kbps/GMSK(25KHz) 4.8kbps/GMSK(12.5KHz)
Over-the-Air Protocol	Transparent EOT/EOC (Transparent Method), Packet Switched (Sub-Package Method), Digipeater, Trimble, Satel
Forward Error Correction	Have
Frequency	220-240MHz，410-430/430-450/450-470MHz，410-480MHz
RF Power Selection	High/Low	0/0.1-7Watts
RF Power Output	35/45/25Watts	0/2-7Watts
Receive Sensitivity	-110dBm BER 10^-5
Adjacent Channel Selectivity	>65 dB (25KHz)，>55dB (12.5KHz)
Operating Temperature	-40 to +70℃	-30 to +60℃/-55 to +85℃
Storage Temperature	-55 to +85℃	-55 to +85℃
Shock	ANSI/ASAE EP455
Structure	Water and Dust Resistant IEC 144/855420 IP 66
Size	15.8×7.0x16.7cm/11.9×8.6×21.3cm/11.5×5.2×15.1cm	8.3×4.7×1.7cm/5.7×3.6×0.67cm
Weight	1.34Kg/1.95Kg/0.8Kg	86g/18g
Data/Power Cable	5 Pin LEMO #1 Shell	6 Pin : GND VCC SGND TXD RXD DCD
Install	Tripod	Built-in
